Java Chapter 17 - Hashing
17.1 Hash Table
A hash table is a method of storing
data that improves the searching efficiency to O(1). This means that the
size of the data set (n) has no effect on the length of time it takes to search. The hash table has two parts: (1) the array of data, and (2) a hash

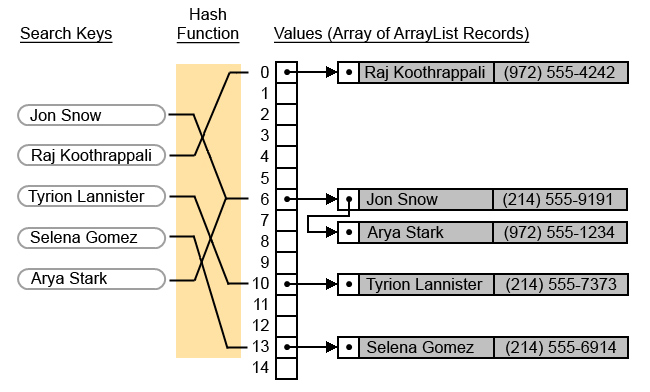

function that maps each data item to an index in the array. The diagram
below shows a 15 element array to store the values. When you search for a
name (search keys), a hash function maps it to an index in the array.
An example hash function could convert text keys to numbers (e.g. add the ASCII values for each character). Once you get a number for the text, you could mod it by the data set size (15) to get the index for where to store the value. This type of hash function will give you an index within the range of your array size, but does not guarantee that the index will be unique. Therefore, you will have collisions where multiple values map to the same index number. There are many ways to handle collisions. One way is to keep an ArrayList to hold all the keys that map to the same index (e.g. Jon Snow and Arya Stark).
Function Converts Text
|Mod by data set size (15) to get Index|
|Jon Snow||201||201 % 15 = 6|
|Raj Koothrappali||540||540 % 15 = 0|
|Tyrion Lannister||310||310 % 15 = 10|
|Selena Gomez||268||268 % 15 = 13|
|Arya Stark||186||186 % 15 = 6|
17.2 Cryptographic Hashing

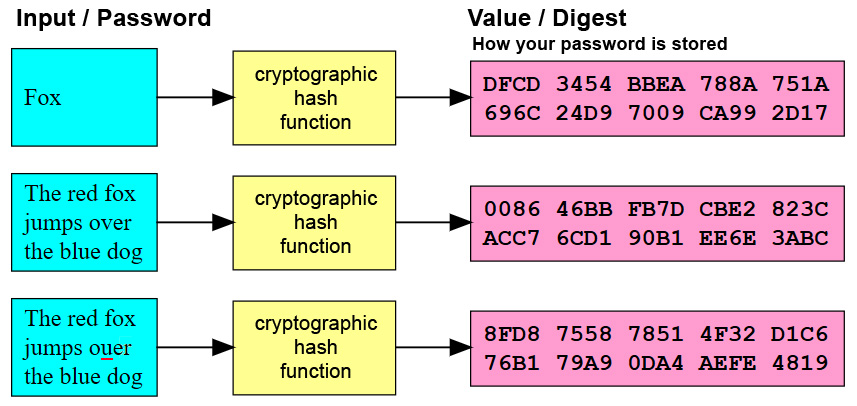

Passwords on servers are usually
stored as cryptographic hashes. A cryptographic hash function has these
(1) It is very difficult to reverse. The hash function converts the Input into a digest (a summarized form), and is therefore considered to be a one way function.
(2) It creates a fixed-size alphanumeric string, or hash value.
(3) Small changes in the source input drastically change the hashed value.
(4) Collisions (two different inputs that create the same hash value) are possible, but statistically are rare.
Popular cryptographic hash functions include MDA and SHA. Hackers have created huge precomputed lookup or "rainbow tables" for character combinations. They can run the has values through the table to see if it matches a password. To make this even more difficult, hashes are usually "salted". One way to salt the hash is to add a large random number to a user's password before it is hashed. The hacker would have to generate a new rainbow table for each user.
17.3 Hashtable Class
The Hashtable class is part of java.util. It stores key/value pairs in a hash table. Below are a few of the methods.
|clear()||Clears and resets the hash table.|
|get(Object key)||Returns the value of the specified key. If the key is not in the hash table, then it returns null.|
|isEmpty()||Returns true if the hash table has no key/value pairs.|
|put(Object key, Object value)||Inserts a key/value pair into the hash table.|
|remove(Object key)||Removes the key/value pair from the hash table.|
|size()||Returns the number of entries in the hash table.|
|containsKey(Object key)||Returns true or false whether the key is found in the hash table.|
The program below demonstrates a simple hash table.
public class hash
public static void main(String args)
// Create Hashtable
Hashtable<String, Integer> MyHTable = new Hashtable<String, Integer>();
// Add Key and Value pairs to MyHTable
